1. Overview
For life search and rescue: the audio and video life detector is equipped with a rotating infrared camera probe, which can detect the images of various complex environments and places, so that
the rescuers can see the scene images, and realize two-way voice intercommunication to provide technical assistance for the rescuers.
2. Application scope
Fire fighting rescue, earthquake rescue, collapse rescue
3. System Technical parameters
The system is composed of host,
probe (rotating infrared colorful camera),
probe rod, wireless receiver, headphone,
2 batteries, 1 shoulder strap, and 1 shock-absorbing packaging box

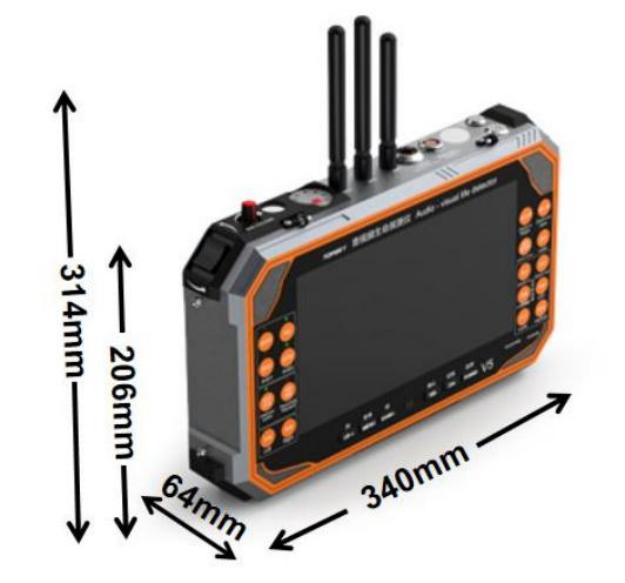

3.1 Host – (control unit)
1. Display screen:10-inch touchable LCD display with high resolution of 1920 * 1080 pixels
2. Display all reading and indicators from camera, such as battery status etc
3. Data can be exported through memory SD card, {SD card default 32GB}
4. ★Digital zooming:zoom in/out the video by pressing buttons or touching the screen
5. Equipped with Sunshade, which enable the images to be seen clearly under sun light
6. Battery: Lithium rechargeable battery, total 2pcs, 1 standard and one extra battery
7. Continuous operating time: more than 2hrs of single battery replace the battery according to the usage.
8. Battery Charger: 230Vac/50HZ, 9. Battery full charge time: 4hrs
10. Dimension: 340*206*64mm
11. Weight: Approx 2.5kg
12. Equipped with hand bands and hanging bands for easy operation

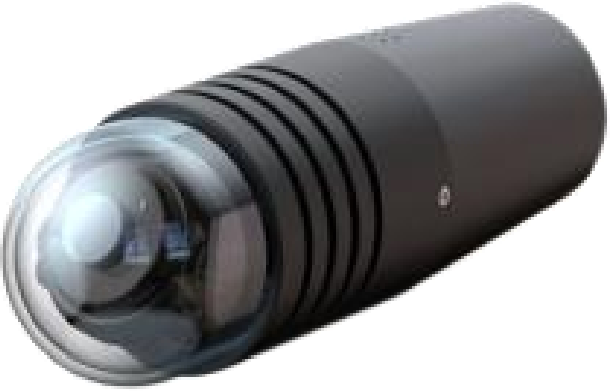

1. Low light colored camera, with high resolution of 1920 * 1080 pixels
2. Lighting: Built-in LED light for high luminosity
3. Night vision: built-in infrared light, with night vision function, night vision distance of 6m
4. With the functions of video and photo recording with the possibility of playback
5. ★Rotation: horizontal 360 continuous rotation, vertical 180 continuous turnover
6. ★real-time two-way communication, 7. Dimensions: Φ 40 * 125mm
8. Weight: Approx 0.3kg
9. ★Protection for camera head: transparent protective cover
10. Ingress Protection for camera Protection cover: IP66
1. The top of the probe rod adopts a gooseneck tube, able to be bent and hold its shape
2. ★ The top maximum extension length: Approx 2.8m
1. ★ shock-absorbing packaging box (rugged and suitable for heavy duty carrying)
2. Packing Dimension: 1150*445*160mm, Weight: Approx 18kgs
