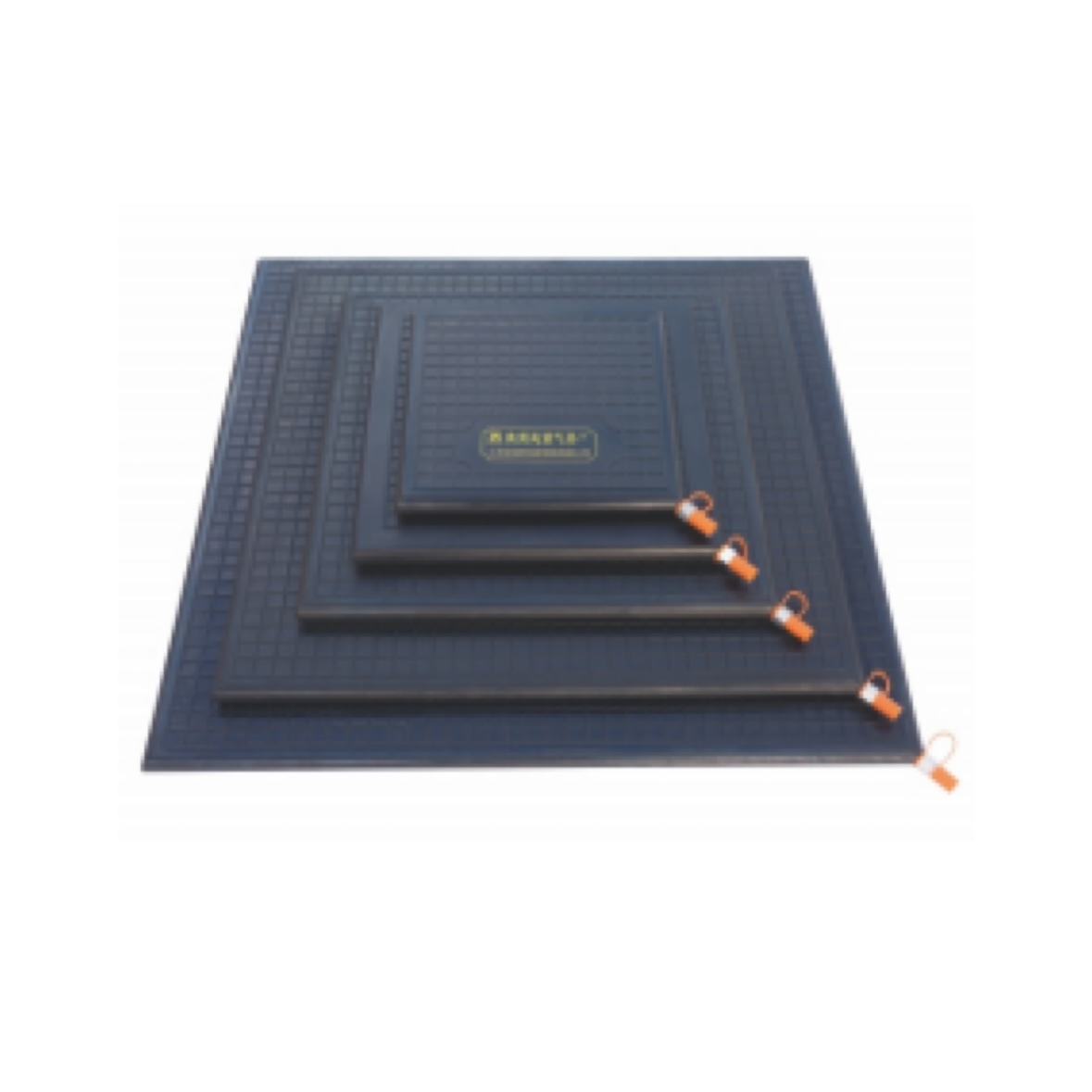

QQD1-35/0.8-KF1 Lifting air cushion

Short Description:

The rescue lifting air cushion is suitable for situations where ordinary lifting equipment is difficult to operate, especially for rescuing people trapped under heavy objects; for disaster relief and rescue work after earthquakes, for mining marble and large stones; for disassembling wheels, drums, and gears when repairing heavy machinery; for train derailment restoration; for opening elevator doors; for supporting or moving pipelines during pipeline maintenance and welding; for replacing tires of large cars, trucks, and tractors; for assisting in unloading tilted trucks; for moving large machinery and equipment; for leveling large experimental platforms; for railway maintenance; for rescuing people trapped in equipment in civil or industrial accidents, etc.


Product Detail

Product Tags

Application

1.Insertion height of 2.5cm
2. The anti - slip mesh pattern design allows two air cushions to be stacked for use.
3.The shut - off valve can seal the air pressure without pressure drop.
4.Fast lifting speed.
5.The air cushions can be used alone or in combination.

Application

1.It is widely used in fire emergency rescue, for supporting and lifting objects to rescue trapped people, and is a special lifting equipment.
2.It is applied in the field of disaster area rescue.

Application

Working pressure: 0.8MPa
Supporting height: 75 - 550mm
Structural height: ≤2.6cm
Maximum lifting force: ≥10kN - 666kN
Ambient temperature: - 20°C - +55°C
Weight: 0.66kg - 28.4kg
Specification: 15015025mm - 96096025mm
Lifting capacity: 1T/3T/6T/8T/10T/12T/15T/18T/20T/24T/31T/40T/48T/54T/68T

Lifting air cushion 1
