LT-SH3000 Electric Lift Automatic Lift

Short Description:

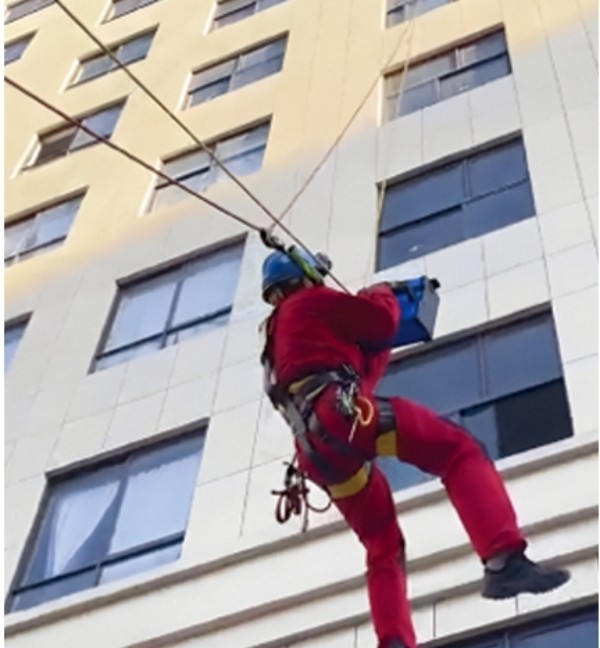

This electric lifter can meet the operators’ requirements for ascending speed, descending speed, traversing, safety, and reliability. With this electric lifter, inspection, maintenance, and repair personnel can easily ascend, descend, and traverse in a safe, efficient, and economical manner.

Send email to us

Product Detail

Product Tags

Application

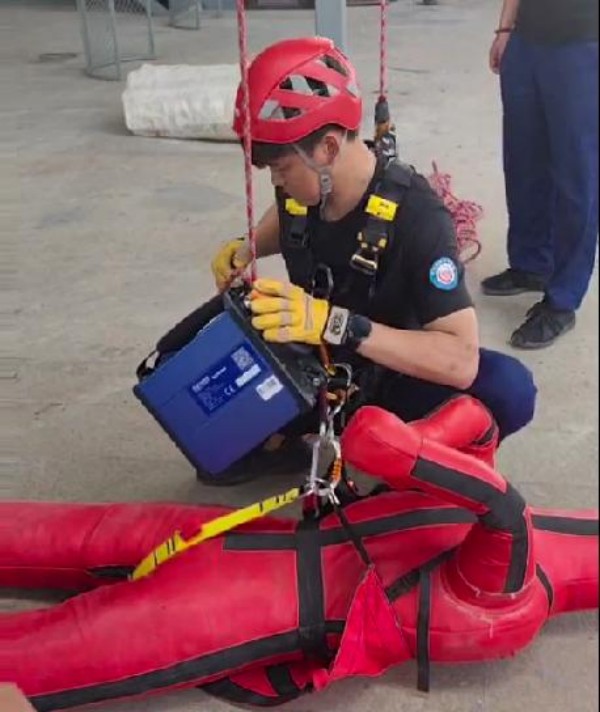

1.It is applicable to industries such as emergency response, fire protection, petroleum, petrochemical, electric power, and mine rescue.
2.High-efficiency brushless motorand High-capacity lithium power battery Electric Lift
3.Small in size and light in weight Electric Lift

Application

1.Adjustable running speed Electric Lift
2.Suitable for 9-14mm static ropes Electric Lift
3.Multiple protection measures Electric Lift
4.Various control methods Electric Lift
5.Safe and reliable Electric Lift

Application

1.Rated load: 300KG
2.Maximum lifting load: 350KG
3.Maximum ascending speed: 0~15m/min
4.Maximum descending speed: <35m/min
5.Speed regulation mode: Stepless speed regulation
6.Continuous lifting stroke (100Kg): 300m
7.Intermittent lifting and descending stroke (100Kg): 600m
8.Applicable rope type: Static rope EN1891A (Kevlar static rope is preferred)
9.Applicable rope outer diameter: 9~14mm
10.Remote control distance: 150m without obstacles
11.Protection level: IP65
12.Self-weight: 18±0.5KG (including battery)
13.Temperature range: -20~60℃
